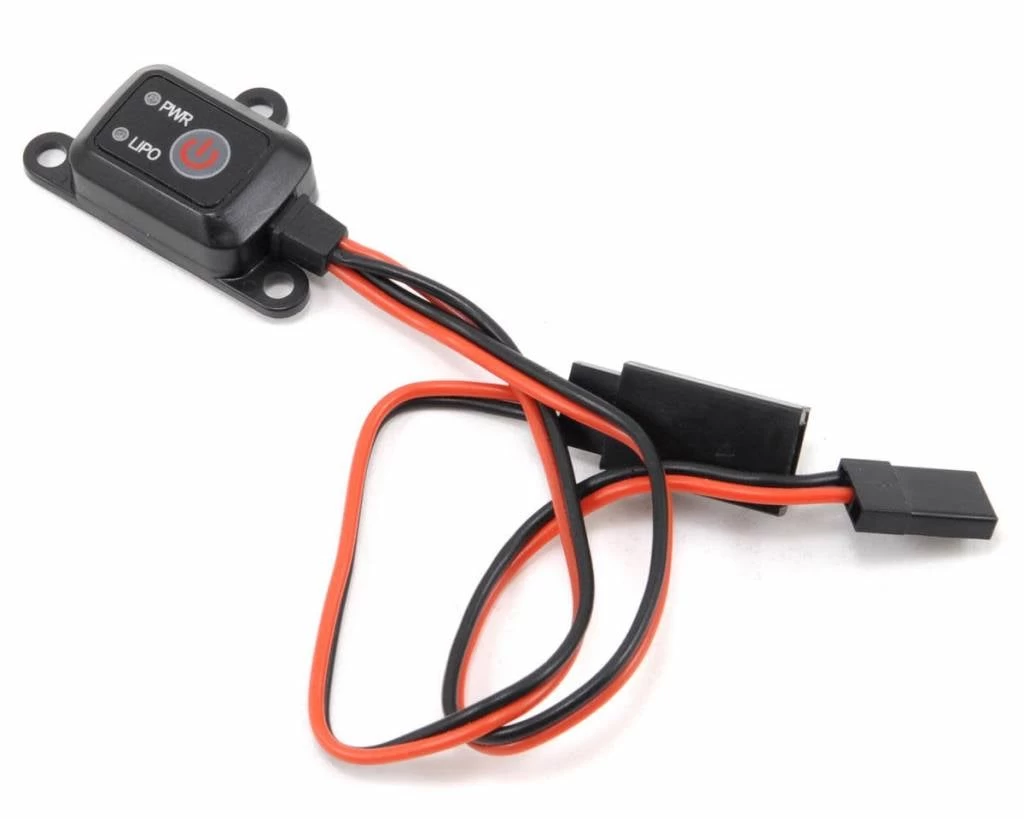

PTK-4060 ProTek RC Electronic Switch W/Voltage Cutoff (Protek RC)

PTK4060 ProTek RC Electronic Switch w/Voltage Cutoff



The ProTek R/C Electronic Switch is a lightweight and compact MCU controlled digital ON/OFF switch for your radio controlled model. With the push of a button this digital electronic switch eliminates the problems with intermittent contact associated with mechanical switches. This ProTek R/C Electronic Switch can be easily mounted to the transponder mount of your model or any other suitable location using double-sided tape (optional bottom covers are included).
The ProTek R/C Electronic Switch includes a LiPo mode that when selected, will auto-detect low LiPo voltage and will cut-off power from your LiPo battery to prevent over discharging. LiPo mode can be turned off if other safeguards are in place or you are using a NiMH or NiCd battery. The ProTek R/C Electronic Switch also monitors the remaining capacity and condition of the battery pack, and indicates the status with the use of LED’s.

Features:



• Digitally MCU Controlled Unit
• Supports Multiple Battery Types
• Integrated LiPo Safety Mode
• LED Battery Status Indication
• Small and Lightweight Design
• Additional Bottom Cases Included



Specifications:



• Input Voltage:4-14A
• Max. Current: 10A
• Battery Mode: 1. NiHM/NiCD; 2. LiPo
• Low Voltage Protection: 6.2V (LiPo Mode Only)
• Operational Temperature: 32-122*F (0-50*C)
• Weight: Approx. 7g
